150Mbps Wireless N ADSL2/2+ Modem Router
150Mbps Wireless N ADSL2/2+ Modem Router
Product Introduction

Product Description

Packaging & Delivery

Packaging Detail: Single product size length 26cm,width 21cm, height 6.5cm 20pieces products per carton,size length 54cm,width 36cm, height 45cm, 0.08505 cubic meter
Delivery Detail: 7 working days

Specifications

1.Wireless N speed up to 150Mbps
2.4*100Mbps LAN Ports , 1*RJ11 Port
3. WPS Button
4.QoS,auto-reconnect, splitter inside

Features

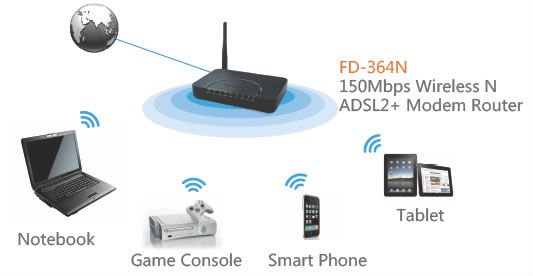

  • High speed DSL modem, NAT wireless router in one device provides one-stop networking solution,
  • Wireless N speed up to 150Mbps makes it ideal for bandwidth consuming or interruption sensitive applications like video streaming, online gaming and VoIP,
  • Easy Setup Assistant provides quick & hassle free installation
  • WPS (Wi-Fi Protected Setup) allows setting up security quickly, simple and easy
  • Dual Firewall (NAT and SPI firewall) protects LAN devices from potential attacks across the Internet
  • QoS enables smooth VoIP/IPTV streaming and lag-free online gaming
  • Auto-reconnect keeps you online indefinitely
  • Port-mapping binds specific LAN ports and PVCs for differential services



Specifications

Basic

Interfaces

1 RJ11 DSL port, 4 RJ45 LAN ports, supports IEEE802.3, 802.3u

LEDs

Power, LAN1—LAN4, WPS, WLAN, DSL, Internet

Data Rate

Downstream: Up to 24Mbps
Upstream: Up to 1Mbps

Wireless Standards

IEEE 802.11n, IEEE 802.11g, IEEE802.11b

Wireless Features

Wireless speed up to 150Mbps
Provides WPA/WPA2, WPA-PSK/WPA2-PSK, TKIP/AES
Provides 64/128-bit WEP encryption security and wireless LAN ACL
(Access Control List)

Security

NAT and SPI Firewall, Packet Filter

VPN Pass Through

IPSec/PPTP/L2TP Pass-through

Switching Features

IGMP snooping
IEEE 802.1d transparent bridging

QoS

IP Type of service(ToS)
802.1p

Device Management

HTTP, Telnet
Administration and operation software (Firmware) upgradable
locally by web(HTTP)

ADSL

ADSL Features

Full-rate ANSI T1.413 Issue 2
ITU-T G.992.1 (G.dmt)
ITU-T G.992.2 (G.lite)
ITU-T G.994.1 (G.hs)
ITU-T G.992.3 (G.dmt.bis)
ITU-T G.992.5
Supports Annex A/L
Max 6 kilometers

ATM Features

UNI 3.1, ATM Adaptation Layer Type 5-AAL5
Multiprotocol encapsulation over ATM (RFC 1483)
UBR, CBR, VBR-rt, VBR-nrt
Supports 8 PVCs

PPP Features

PPP over ATM (RFC 2364)
PPP over Ethernet (RFC 2516)

Package

Contents

1x Wireless N ADSL2+ Modem Router

1x CD-ROM

1x Quick Installation Guide

1x Power Adapter

1x RJ45 Ethernet Cable

2x RJ11 Telephone Cable

1x ADSL Splitter

Other

Operating Temperature

0°C~40°C (32°F~104°F)

Storage Temperature

-40°C~70°C (-40°F~158°F)

Operating Humidity

10% ~ 90%, non condensation

Storage Humidity

5%~90%, non-condensing

Certi­fications

CE, FCC, RoHS

150Mbps Wireless N ADSL2/2+ Modem Router
